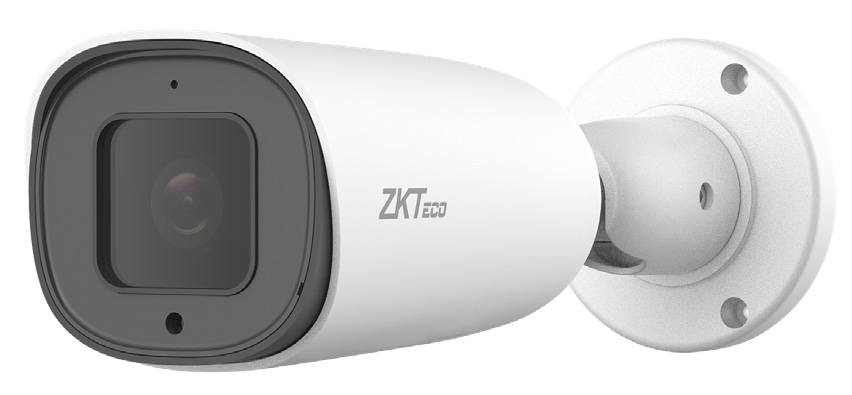

BL-852T48S-S6 Zkteco

Camera

Model

BL-852T48S-S6

Image Sensor

1/2.8” 2MP Sony STARVIS CMOS

Effective Pixels

1920 * 1080

Flash / DDR

1Gb / 2Gb

IR LED No.

4 (Smart IR)

IR Distance

80m

S/N Ratio

> 52dB

Lens

Lens Type

Motorized

Mount Type

Board-in

Focal Length

3.35mm ~ 10.05mm

Aperture

F1.7 ~ 3.0

FOV

38° ~ 107°

Optical Zoom

3X

Video

Compression

H.265 / H.264

Resolution

1080P (1920 x 1080) / 1.3MP (1280 x 960) / 720P (1280 x 720)

Bitrate Control

CBR / VBR

Bitrate

1024Kbps ~ 4Mbps

Multi-Streaming

Main Stream

1080P@25fps / 960P@25fps / 720P@25fps

Sub Stream

D1 (704 * 576 )@25fps / VGA@25fps / Q720P@25fps

Third Stream

1080P@25fps

Motion Detection

Support

Digital Zoom

Support

Audio Compression

G7.11u

Privacy Mask

4 areas

WDR

TWDR

Day / Night

Support

White Balance

Support

Corridor Mode

Support

Defog

N/A

Noise Reduction

2D/3D DNR

HLC

Support

Mirror / Flip

Support

BLC

Support

ROI

4 areas

Anti-flicker

N/A

IVA

Intelligent Video

Face Recognition

Facial Detection

Face Templates

2000

Face Detected Per Frame

30

Detected Face Size

80 x 80 ~ 300 x 300 Pixels

Face Quality Filtering

Support

Detection Area

User-defined

Capture Response

≤200ms

Network

Protocol

TCP/IP, UDP, HTTP, HTTPS, DHCP, RTSP, DDNS, NTP, PPPoE, UPnP, SMTP, FTP

Interoperability

ONVIF Profile S, SDK, API

Max. Online Users

3

Web Browser

IE / Firefox / Chrome / Safari

Management Software (VMS)

AntarVis 2.0
ZKBioSecurity IVS
ZKBio Access IVS

Operation System

Windows

Mobile APP

AntarView Pro

P2P Cloud Service

Support

Interface

Ethernet

1 R1 RJ-45 port (10/100Mbps)

Audio I/O

1/0

Alarm I/O

N/A

RS485

N/A

Reset Button

N/A

Micro-SD Slot

N/A

ANR

N/A

USB

N/A

General

Power Supply

PoE (IEEE802.3af ), DC 12V±10%

Power Consumption

< 3W

Ingress Protection

IP67

Dimensions (L*W*H)

246 * 85 * 76 (mm)

Working Temperature

-20°C to 55°C

Working Humidity

0% to 90%

Net Weight

0.50kg

Gross Weight

0.64kg

Ordering Information

Camera

2MP Camera

Model

BL-852T48S-S6

Description

2MP Motorized Lens Face
Recognition Bullet IP Camera
