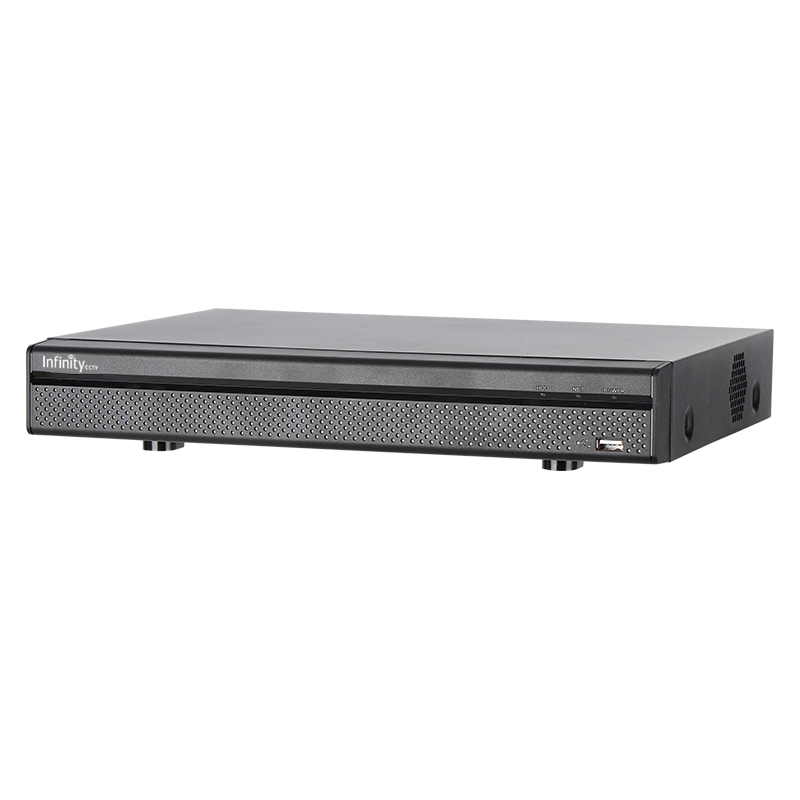

DVR Infinity BDV-6104/6108/6116-TNT 4/8/16 Channel 4MP Mini 1U DVR

Tulis ulasan
Jual DVR Infinity BDV-6104/6108/6116-TNT 4/8/16 Channel 4MP Mini 1U DVR Garansi Resmi
  • Sku Number :
  • Part Number :
  • Global Trade Number :
Call For Price

Product details of DVR Infinity BDV-6104/6108/6116-TNT 4/8/16 Channel 4MP Mini 1U DVR


Embedded processor
H.264+/H.264 dual-stream video compression
Support HDCVI/CVBS video inputs
Max 6/12/24 channels IP camera inputs, each channel up to 8MP
Max 24/48/96Mbps Incoming Bandwidth
HDMI output up to 4K(3840x2160) resolution
Smart Search and Intelligent Video System


System Main Processor Embedded Processor
Operating System Embedded LINUX
Display Interface 1 HDMI(up to 3840x2160),1 VGA
Resolution 3840x2160,1920×1080, 1280×1024, 1280×720, 1024×768
Multi-screen Display 4CH: 1/4/6
8CH: 1/4/8/9/16
16CH: 1/4/8/9/16/25
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Video Detection and Alarm Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video
Loss,Tampering and Diagnosis
Playback and Backup Playback 4CH: 1/4
8CH: 1/4/9
16CH: 1/4/9/16
Search Mode Time /Date, Alarm, MD and Exact Search (accurate to second)
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode USB Device/Network
Storage Internal HDD 1 SATA Port, up to 8TB capacity
Auxiliary Interface USB 2 USB Ports (1 USB 2.0 , 1 USB 3.0)
RS485 1 Port, for PTZ Control
Third-party Support Third-party Support Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
Audio and Video HDCVI Camera Input 4/8/16 Channel
IP Camera Input 4+2/8+4/16+8 Channel, each channel up to 8MP
Audio In/Out 1/1, RCA
Two-way Talk Reuse audio in/out, RCA
Recording Compression H.264+/H.264
Resolution 4K, 4MP, 1080P, 720P, 960H, D1, HD1, BCIF, CIF, QCIF
Record Rate Main stream: 1st channel 4K(1~12/15fps)/ 4MP(1~15fps), others 4MP(1~15fps);
1080P/720P/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps)
Sub steram:D1/CIF/QCIF(1~25/30fps)
Bit Rate 1Kbps ~ 12288Kbps Per Channel
Record Mode Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec,
Post-record: 10 ~ 300 sec
Network Interface 1 RJ-45 Port (1000M)
Network Function HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP,
Server, P2P,IP Search (Support Dahua IP camera,
DVR, NVS, etc.)
Max. User Access 128 users
Interoperability ONVIF 2.42, CGI Conformant
Electrical Power Supply 4/8CH: DC12V/2A, 16CH: DC12V/3A
Power Consumption  <15W (Without HDD)
Environmental Operating Conditions -10°C ~ +55°C (+14°F ~ +131°F), 0~ 90% RH
Storage Conditions -20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH
Construction Dimensions Mini 1U, 325mm×255mm×55mm (12.8" x 10" x 2.2")
Net Weight 1.5kg (3.3 lb) (without HDD)
Gross Weight 2kg (4.4lb)
Certifications Certifications FCC: Part 15 Subpart B ICES 003 Issue 6
CE: EN 55032: 2012+AC:2013 (Class B)
EN 55024 : 2010 EN 61000-3-2 : 2014
EN 50130-4: 2011 EN 61000-3-3 : 2013
UL: 60950-1 and CAN/CSA C22.2 No. 60950-1-07
