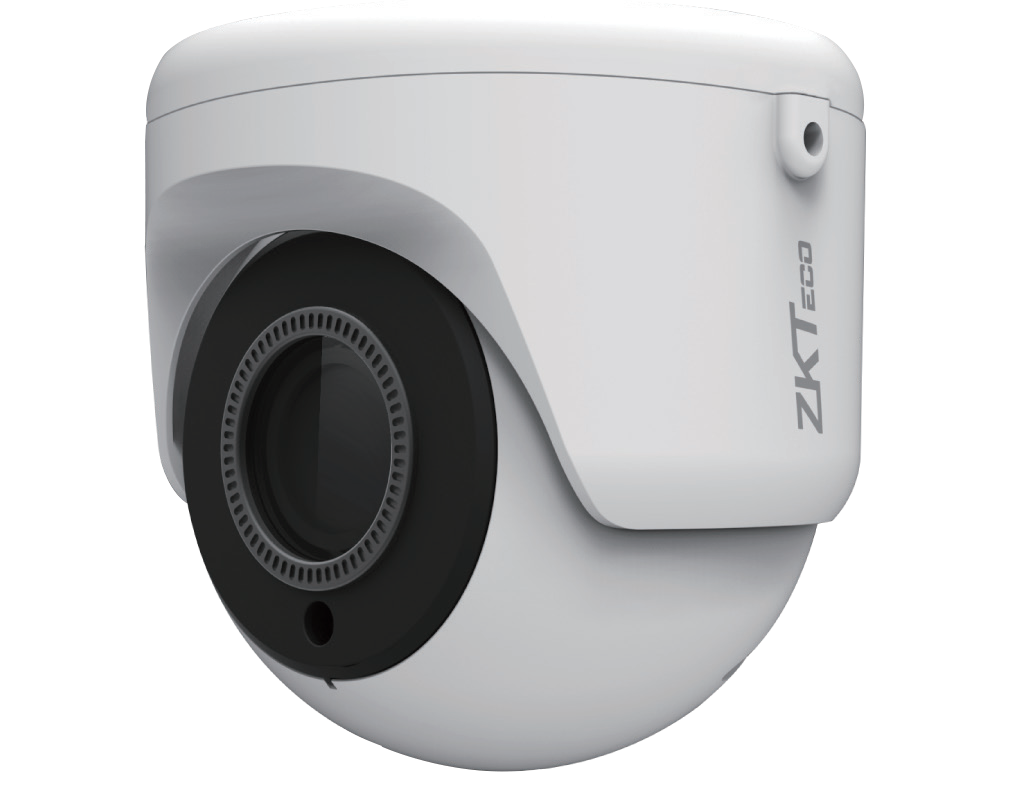

EL-855L38I-E3 Zkteco

Camera

Model

EL-855L38I-E3

Image Sensor

1/2.8” Sony STARVIS CMOS

Effective Pixels

2560 * 1920

Flash / DDR

128Mb / 1Gb

IR LED No.

2

IR Distance

50m

S/N Ratio

> 52dB

Lens

Lens Type

Motorized

Mount Type

Board-in

Focal Length

3.6mm ~ 10.8mm

Aperture

F1.7 ~ F3.3

FOV

29.8° ~ 93.5°

Optical Zoom

3X

Video

Compression

H.265+ / H.265 / H.264

Resolution

5MP (2560 x1920) / 4MP (2688 x 1520) / 3MP (2304 x 1296) / 1080P (1920 x 1080) /
1.3MP (1280 x 960) / 720P (1280 x 720)

Bitrate Control

CBR / VBR

Bitrate

H.265+: 4Mbps - 16Mbps
H.265: 4Mbps - 16Mbps
H.264: 5Mbps - 20Mbps

Multi-Streaming

Main Stream

5MP@20FPS / 4MP@25FPS / 3MP@25FPS / 1080P@25FPS / 960P@25FPS / 720P@25FPS

Sub Stream

D1@25FPS / VGA@25fps / CIF@25FPS

Third Stream

N/A

Motion Detection

Support

Digital Zoom

Support

Audio Compression

G7.11u

Privacy Mask

5 areas

WDR

DWDR

Day / Night

Support

White Balance

Support

Corridor Mode

Support

Defog

Support

Noise Reduction

2D/3D DNR

HLC

Support

Mirror / Flip

Support

BLC

Support

ROI

4 areas

Anti-flicker

Support

IVA

Face Detection / Line Crossing / Intrusion / Object Left / Lost / Counting / Video Tampering

Intelligent Video

Facial Detection

Face Detection / Line Crossing / Intrusion / Object Left / Lost / Counting / Video Tampering

Face Templates

N/A

Face Detected Per Frame

30

Detected Face Size

N/A

Face Quality Filtering

Support

Detection Area

User-defined

Capture Response

≤1s

Network

Protocol

TCP/IP, UDP, HTTP, DHCP, RTSP, NTP

Interoperability

ONVIF Profile S, SDK, API

Max. Online Users

3

Web Browser

IE / Firefox / Chrome / Safar

Management Software (VMS)

AntarVis 2.0
ZKBioSecurity IVS
ZKBio Access IVS

Operation System

Windows

Mobile APP

AntarView Pro

P2P Cloud Service

Support

Interface

Note

Video streaming is not available for Firefox / Chrome / Safari

Ethernet

1 RJ-45 port (10/100Mbps)

Audio I/O

1/0

Alarm I/O

N/A

RS485

N/A

Reset Button

N/A

Micro-SD Slot

N/A

ANR

N/A

USB

N/A

General

Power Supply

PoE (IEEE802.3af ), DC 12V±10%

Camera

5MP Camera

Description

5MP Motorized Lens Face Detection
Eyeball IP Camera

Dimensions (L*W*H)

Φ111.6 * 105 (mm)

Gross Weight

0.64kg

Ingress Protection

IP67

Model

EL-855L38I-E3

Net Weight

0.40kg

Ordering Information

Power Consumption

< 3W

Working Humidity

0% ~ 90%

Working Temperature

-30°C ~ 60°C
