-2 Megapixel high-performance CMOS
-TurboHD output, up to 1080P resolution
- 2.8-12mm vari-focal lens
-True Day/Night
-DNR, Smart IR
-Up To 40M IR distance
-IP66 Weatherproof
Description

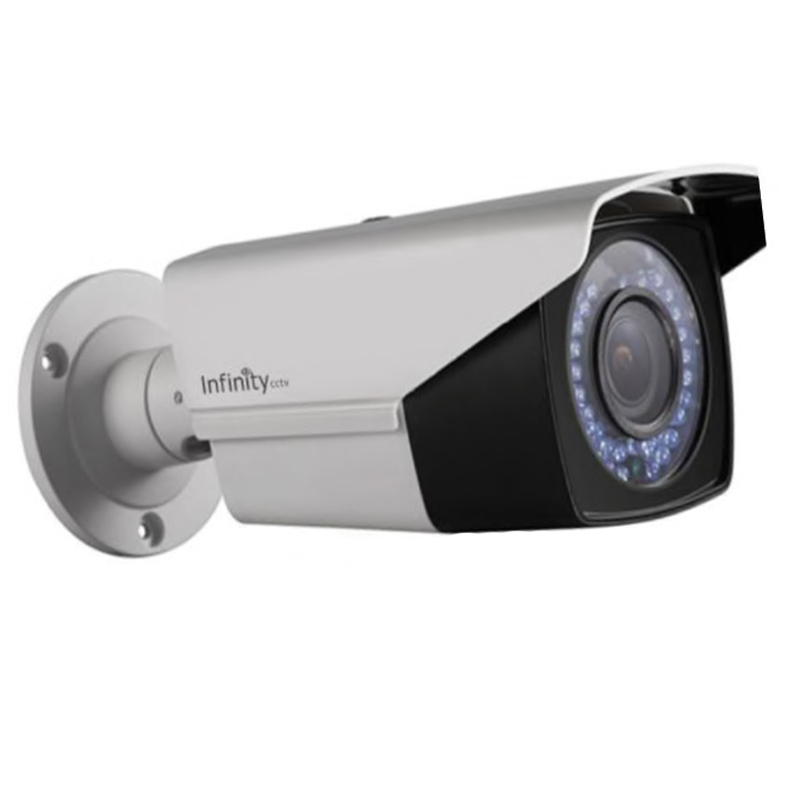

| Model | Infinity TS-68V | |
| Camera | Image Sensor: | 2 MP CMOS Image Sensor |
| Signal System: | PAL/NTSC | |
| Effective Pixels: | 1930(H)*1088(V) | |
| Min. Illumination: | 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR 0.014 Lux @ (F1.4,AGC ON),0 Lux with IR |
|
| Shutter Time: | 1/25(1/30) s to 1/50,000 s | |
| Lens: | 2.8-12mm @ F1.4 Angle of view: 105.2° - 32.8° |
|
| Lens Mount: | φ14 | |
| Day& Night: | ICR | |
| Video Frame Rate | 1080p@25fps / 1080p@30fps | |
| HD Video Output: | 1 Turbo HD output | |
| Synchronization: | Internal Synchronization | |
| S/N Ratio: | More than 62 dB | |
| Menu | AGC | Support |
| D / N Mode | Color/ BW EXT | |
| White Balance | Auto/Manual | |
| BLC | Support | |
| Language | English/ Chinese | |
| Functions | Digital noise reduction, Mirror | |
| General | Operating Conditions: | 40 °C - 60 °C (-40 °F - 140 °F) |
| Humidity 90% or less (non-condensing) | ||
| Power Supply: | "12 VDC±15% -A: 12 VDC±15%, 24 VAC±15%" | |
| Power Consumption: | 5W | |
| Weather Proof: | IP66 | |
| IR Range: | Up to 40m | |
| Communication | Up the coax Protocol: HIKVISION-C(Coaxitron) |
|
| Dimension: | 92 × 84.8 × 269.6mm(3.62” × 3.34” × 10.6”) | |
| Weight: | 690g (1.52 lbs) | |
