Camera
Model

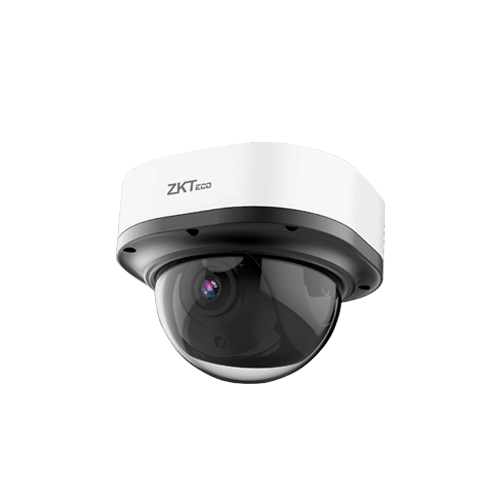

DL-852Q28B-LP
Image Sensor
1/2.8” Sony STAVIS CMOS
Effective Pixels
1920 * 1080
Min. Illumination
Color: 0.001Lux@F1.7 (AGC ON)
Flash
512 Mb
IR LED No.
2 (Smart IR)
IR Distance
50m
S/N Ratio
> 52dB
Lens
Lens Type
Motorized
Mount Type
Board-in
Focal Length
3.35mm ~ 10.05mm
Aperture
F1.7 ~ F3.0
FOV
38° ~ 107°
Optical Zoom
3X
Video
Compression
H.265+ / H.265 / H.264
Resolution
1080P (1920 * 1080) / 1.3MP (1280 * 960) / 720P (1280 * 720) Q720P (640 * 360) / CIF (352 * 288)
Bitrate Control
CBR / VBR
Bitrate
H.265+: 1536Kbps - 7Mbps
H.265: 1536Kbps - 7Mbps
H.264: 1792Kbps - 9Mbps
Multi-Streaming
Main Stream: 1080P@25fps
Sub Stream: Q720P@25fps
N/A
Motion Detection
Support
Digital Zoom
Support
Audio Compression
G7.11u
Privacy Mask
5 areas
WDR
TWDR
Day / Night
Support
White Balance
Support
Defog
Support
Noise Reduction
3D DNR
Mirror / Flip
Support
Corridor Mode
Support
HLC
Support
BLC
N/A
ROI
4 areas
Anti-flicker
Support
IVA
Intelligent Video
Face Recognition / Line Crossing / Intrusion / Object Left / Lost / Counting / Video Shelter /
Scene change / Audio Detection / Fire Detection / VQD
Protocol
TCP/IP, UDP, HTTP, DHCP, RTSP, DDNS, NTP, PPPoE, UPnP, SMTP
Interoperability
ONVIF, SDK, API
Max. Online Users
5
Web Browser
IE / Firefox / Chrome / Safari
Management Software (VMS)
AntarVis 2.0
Operation System
Windows
Mobile Application
Antar View Pro
P2P Cloud Service
Support
Interface
Ethernet
1 RJ-45 port (10/100Mbps)
Audio I/O
1 in / 1 out
Alarm I/O
2 in / 1 out
RS485
Support
Reset Button
Support
Micro-SD Slot
64GB MicroSD card included
ANR
Support
USB
N/A
General
Power Supply
PoE (IEEE802.3af ), DC 12V±10%
Power Consumption
< 3W
Ingress Protection
IP 67
Dimensions
247(L) * 85(W) * 76(H)mm
Working Humidity
10% ~ 90%
Working Temperature
-30°C ~ +60 °C
Net Weight
0.50 kg
Gross Weight
0.64 kg
