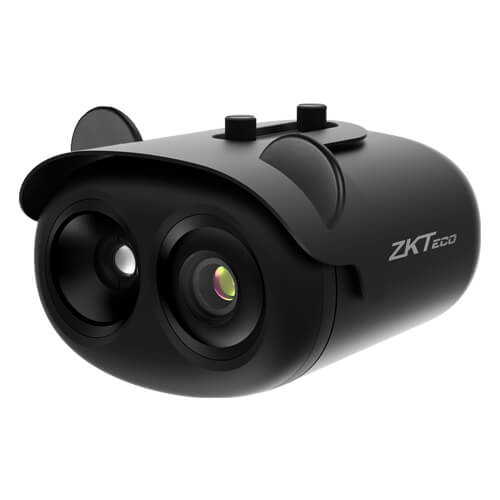

ZKTEco ZN-T1

Thermal Detector

Uncooled IRFPA Microbolometer

Effective Pixels

320(H) * 240(V)

Pixel Size

20um

Thermal Sensitivity (NETD)

≤ 50mK @ F1.0 300K

Spectral Range

8 ~ 14um

Image Setting

Polarity LUT / DVE / Mirror / FCC / 3D DNR Brightness / Contrast / ROI

Color Mode

Black-Heat / White-Heat / Rainbow / Iron-Red up to 14 modes

Lens Type

Fixed

Focus Control

Manual Focus

Focal Length

8mm

Iris

F1.0

FOV

H: 44°, V: 33°

Image Sensor

1/2.8” Sony CMOS

Effective Resolution

1920(H) * 1080(V)

Shutter Speed

1/50 ~ 1/64,000s

Wide Dynamic Range

True WDR 120dB

Min. Illumination

Color: 0.1Lux @ (F1.2, AGC ON)
B/W: 0.01Lux @ (F1.2, AGC ON)

S / N Ratio

More than 55dB

Focal Length

2.7 ~ 12mm

Max Aperture

F1.6 ~ F2.9

FOV

105° ~ 32°

Focus Control

Motorized

Compression

H.265, H.264, MJPEG

Frame Rate

Main Stream:
Thermal: D1 @25 / 30fps
Visible: 1920 * 1080 / 1280 * 720 @25 / 30fps

Sub Stream:
Thermal: CIF @25 / 30fps
Visible: D1 / VGA / 640 * 360 / CIF / QCIF / QVGA @25 / 30fps

Bit RateControl

CBR / VBR

Bit Rate

Thermal: 100Kbps ~ 6Mbps
Visible:
Main stream: 200Kbps ~12Mbps
Sub stream: 10Kbps ~ 6Mbps

Region of Interest

Off / On (8 rectangular zones)

Digital Zoom

16x

Mirror

Support

Defog

Support

Motion Detection

Support

Privacy Masking

Off / On (4 rectangular areas)

DVE Image Enhancer

Support

Audio Compression

G.711, AMR, RAW_PCM (Optional)

Alarm

Motion Detection, Disk Alarm, I/O Alarm, Temperature Alarm

IVS

Smart Body Detection, Perimeter, Single Virtual Fences, Double Virtual Fences, Object Left, Object

Detection Mode

Body temperature monitoring

Detection Preset

Max.16 goals

Temperature Alarm

Out-of-range temperature alarm, temperature difference alarm

Accuracy

≤ 0.3°C (Emission rate, distance, ambient temperature, etc.)

Response Time

≤ 50ms

Detection Range

-20°C ~ 60°C (-4°F ~ 140°F)

Temperature Display Mode

If temperature difference > 5°C, display absolute temperature value;
If temperature difference ≤ 5°C, display relative temperature value
(temperature difference DEV = highest value - average)

Ethernet

RJ-45 (10 / 100Base-T)

Protocol

IPv4 / IPv6, HTTP, RTSP / RTP / RTCP, TCP / UDP, DHCP, DNS, PPPOE, SMTP, SIP, 802.1x

Interoperability

ONVIF, CGI, SDK

Streaming Method

Unicast

Max. User Access

10 Users

Edge Storage

NAS
Local PC for instant recording
Micro SD card 128GB

Web Viewer

< IE11, Chrome, Firefox

Web Language

English, Chinese, Polish, Italian, Portuguese, Spanish, Russian, French, Czech, Hungarian

Ethernet

1 Ethernet (10 / 100 Base-T) RJ-45 Connector

Audio

1ch Audio-In, 1ch Audio-Out

Alarm

2ch Alarm-In, 2ch Alarm-Out

RS485

Support

BNC Output

N/A

Reset Button

Support (Built-in)

Power Supply

DC 12V / POE (IEEE 802.3af )

Power Consumption

Max 10W

Storage Conditions

0 ~ 90% RH

Certifications

CE / FCC

Ingress Protection Rating

IP66

Casing

Metal

Dimension

212 * 182 * 136 (mm) (L*W*H)

Net Weight

2kg
