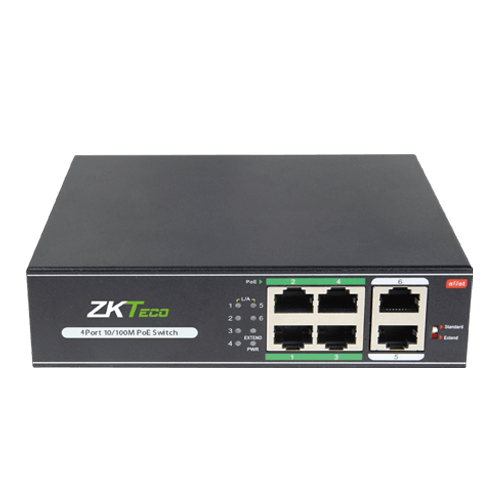

Model
PE04-60
Ethernet Port
4 PoE Ports (10 / 100 Mbps)
2 Uplink Ports (10 / 100 Mbps)
All ports support MDI / MDIX self-adaptation
POE Standard
IEEE 802.3af, IEEE802.3at
PoE Consumption
Max 30W per Port, total PoE budget 60W
Network Protocol
IEEE 802.3i 10BASET
IEEE 802.3u 100BASETX
IEEE 802.3x Flow Control
Switching Bandwidth
1.6Gbps
Packet Fowarding Rate
0.982Mpps
Buffer Memory
768KB
Mac Table Size
1KB
MTBF
100,000 hours
Power Input
AC 220V, 50 / 60Hz
Lightning Protection
2KV
Working Temperature
-20°C ~ 50°C (-4°F ~ 122°F)
Working Humidity
10% ~ 90%, non-condensing
Dimensions (L*W*H)
142 * 113 * 40 (mm)
Net Weight
1kg
