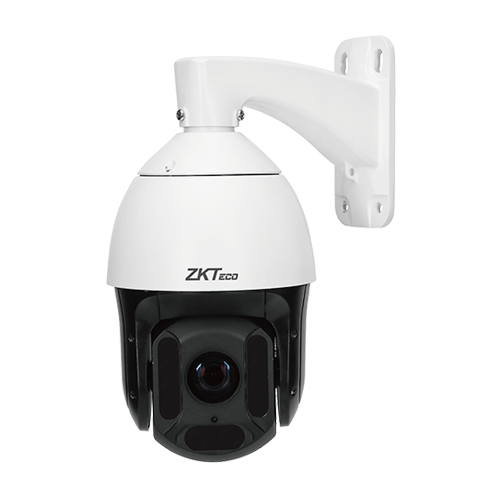

ZKTECo PTZ PL-35C33D

Model

PL-35C33D

Image Sensor

1/2.7'' 5MP Low light CMOS

Lens

33X f=4.6mm ~ 152mm

FOV

66.1°(W) ? 2.46°(T)

Scanning System

Progressive

Eletronic Shutter

1/25s - 1/50,000s

Min. Illumination

0.1Lux / F2.0 (color), 0 Lux with IR

IR Distance

Up to 120 meters

Video

Mirror / Flip

90°

Resolution

5MP (2600 x 1944)

Privacy Mask

Up to 4 areas

Baud Rate (RS485)

2400/4800/9600/19200 bps

BLC

Supported

WDR

DWDR

Day / Night

Auto (ICR) / Color / B / W

White Balance

Auto / Manual / Indoor / Outdoor

Gain Control

Auto

Noise Reduction

2D & 3D DNR

Interface

Video Interface

1

RS485

1

Alarm I/O

N/A

P/T

Pan / Tilt Range

Pan: 0° ~ 360° , Tilt: 0° ~ 90°

Pan Speed

0 ~ 200°/s

Tilt Speed

0 ~ 180°/s

Preset

128

Preset Speed

200°/S

PTZ Mode

4 Scan, 4 Tour, 4 Pattern

Idle Motion

Activate preset/Scan/
Tour if there is no command in specied period

Protocol

Pelco-D, Pelco-P

Ingress Protection

IP66

Working Temperature

-20°C ~ 60°C

Power Supply

DC 24V / 2A

Lightning Protection

EDS 4000V

OSD Menu

Supported

Default Bracket

Wall mount

Dimensions (L*W*H)

Φ185(mm) × 374(mm)

Net Weight

6.5kg

Gross Weight

7kg

Ordering Information

Type

5MP PTZ Camera

Part Number

PL-35C33D

Description

5MP HD analog PTZ, 33x
